Module Fabrication
P74 FPSO Offshore Oil and Gas Platform
Client
EBR (TOYO-SETAL) - PETROBRAS
Location
Rio de Janerio, Brazil
Total Tonnage
3,340 tons
Scope

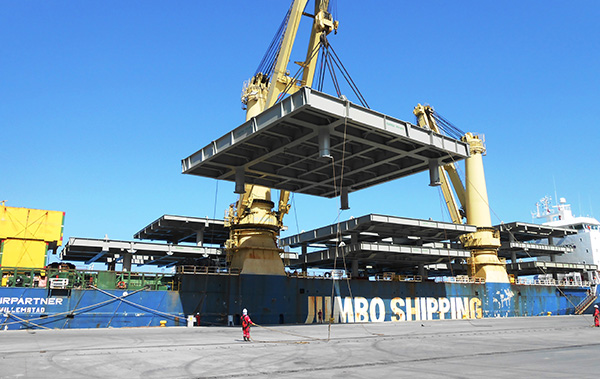

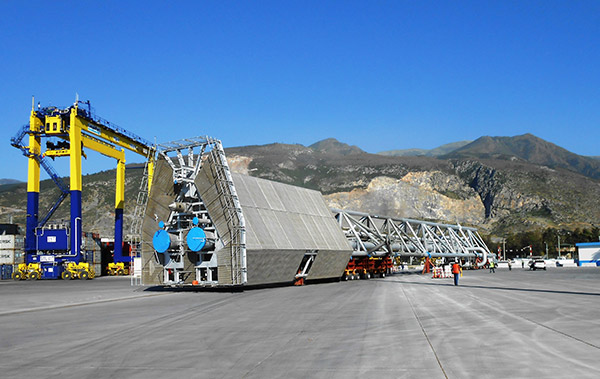

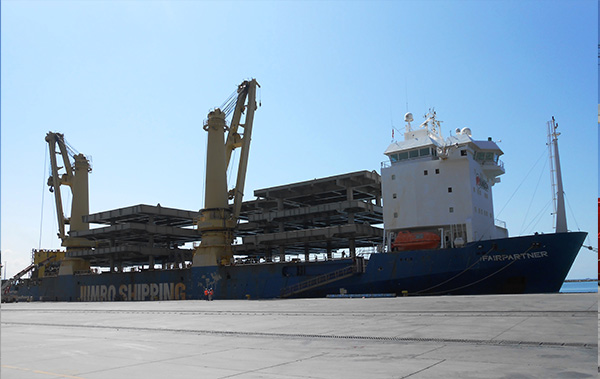

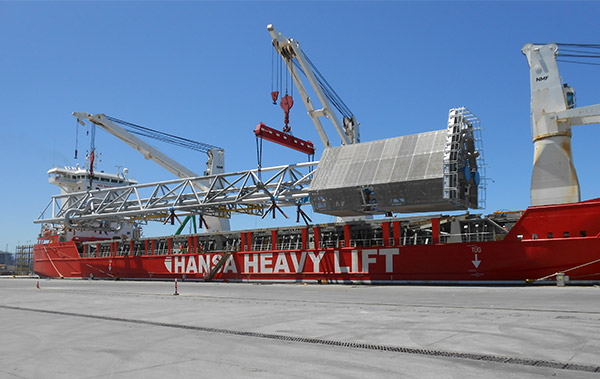

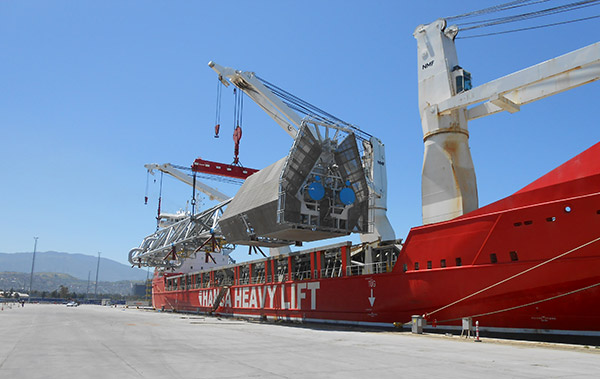

As the scope of TEKFEN Tekfen Manufacturing Ceyhan Facility,, structural steels of process modules, Flare Tower and pipe spools for P74 FPSO Platforms to be installed at Santos Basin Pre-salt Area off-shore, Franco Sul Field in Brazil, have been fabricated. In addition, fabrications of process modules for P74 FPSO at Santos Basin have been performed. Deck segments, Flare Tower including with Heat Shield Panels steel structures and pipe spool fabricated in Tekfen Manufacturing Ceyhan Facility, have been transported to Iskenderun Port by means of special vehicles, and their assembly have been performed over there at the port. Totally, 11 Process Modules of 3,000 tons in weight have been fabricated with legs and Flare Tower totally 340 tons with including process piping which are Duplex / Super Duplex, SS, LTCS, Cu/Ni and CS piping works and Heat Shield Panels handed over to customer within the scheduled time. The Weight of the completed process modules changes between 150 and 310 tons. Dimensions of the biggest module was; W: 29 x L: 22 x H: 4 m, and the weight was 310 tons.
Gallery
